Monoblock Power Amplifier


Premium Silver/Premium Black



Newly incorporated industrial grade can-type output transistors to achieve a perfect non-NFB single push-pull structure.
Monoblock power amplifier that lets high-end speakers around the world provide playback bursting with emotion.

A single push-pull output stage with 4-stage Darlington can-type transistors


We decided that a single-end and single push-pull output was indispensable in creating an emotional musical experience, thus eliminating the "blurring in the microscopic time domain" so often symbolized by improvements in sound quality through high-end clocks. However, there is a still problem that have to overcome the relatively low levels of current provided by the typical single push-pull configurations. As a result, the M-3 has adopted industrial grade can-type output transistors with a relatively small Cob and large current flow. The driver stage incorporates the same output stage transistors used in the A-2 to easily drive these large capacity cans for a total of four Darlington construction stages.
Bus bars with copper plate heat sinks

The main heat sink uses small, lightweight copper plate heat sinks – a rarity in conventional high power amplifiers. This heat sink also combines a bus bar to power the can transistors, while the can-type transistor terminals pass through the bus bar and are mounted directly on the board underneath. This eliminates wiring – the Achilles' heel of can-type transistors – while also removing instability from inductance components and deteriorations to sound quality caused by insulating sheet dumps in the device. Additionally, the heat sink is physically isolated from the chassis, which significantly impacts sound quality aspects such as transparency and providing a feeling of openness. This way, this heat sink kills three birds with one stone.
Non-NFB differential circuits (new Type-R circuits) redesigned exclusively for power amplifiers is used in the voltage amplification stage

Only a single transistor is used to fully amplify the emitter follower, voltage, and differential circuits without any gain. The load impedance in this transistor is a "GND one-stage amplification single-end non-NFB circuit" that connects only to the GND. These new Type-R circuits were created using only 4 bipolar junction transistors and 10 resistors to extract ideal full swing output across a wide spectrum, even though this configuration is primarily the same as that used for single ended tube amplifiers. This ideal non-NFB circuit could easily be dubbed a reference circuit for how well it performs.
Extremely simple construction

We discovered that large current power amplifiers should be dedicated to a single function. It features just one set of input terminals and speaker terminals. It is a single-function monoblock power amplifier with no selectors or attenuators. The signals input from the XLR terminals travel directly to the base of the first stage transistors, undergo single stage amplification, and are output via a single push-pull circuit. The only available operation is the power switch. As expected, the unit contains no unnecessary circuits or components like microcontrollers, etc.
Ultra low loss 1600 VA non-epoxy resin-filling toroidal power transformer

We developed a large power transformer that can be carried by one person alone. This giant power transformer is mounted vertically to the front panel so that any leakage flux travels parallel to the circuit boards, and it is suspended on titanium washers and connected to a spike to ensure that harmful vibrations are not transmitted to the chassis.
High-speed non-NFB power supply

The commutating capacitors use specially selected 470 uF high resistance, small capacity, low magnification foil filter capacitors. Optimizing capacity according to the number of capacitors used and minimizing the power supply load further improves real regulation in this heavy-duty power supply transformer. The rectifier diode uses newly adopted SiC diodes with the latest specs that reinforce the maximum input current value. This creates an unimaginably powerful and fast power supply structure.
Amplifier container completely separate from the main body, each grounded by three spikes

Three spikes ground both the main body and the amplifier container for a total of six spikes in the M-3. While these two components are completely physically separate, the power supply line from the power supply transformer has been shortened to eliminate any negative impacts as a result of vibrations and leakage from the transformer. This truly ideal construction results in an incredulous sound quality that can be experienced by attaching or removing the transportation screw. And of course, the audio board, AC adapter, speaker terminals, input terminals, and base plate are all non-rigid parts.
Specifications
Maximum output   160W (4Ω)
Total harmonic distortion   0.1% (1W)
Frequency characteristic   2Hz ～ 200kHz (±1dB)
Input sensitivity/impedance   2V/25kΩ
Gain   22dB
Power voltage   115V AC 60Hz(M-3T)
Power consumption   110W/36W(no signal)
Maximum external dimensions   Main unit: 340(W)×257(H)×512(D)mm
Weight   31kg
Included accessories   Special speaker cable, Special rack, Power cable, Setting plate, Setting plate

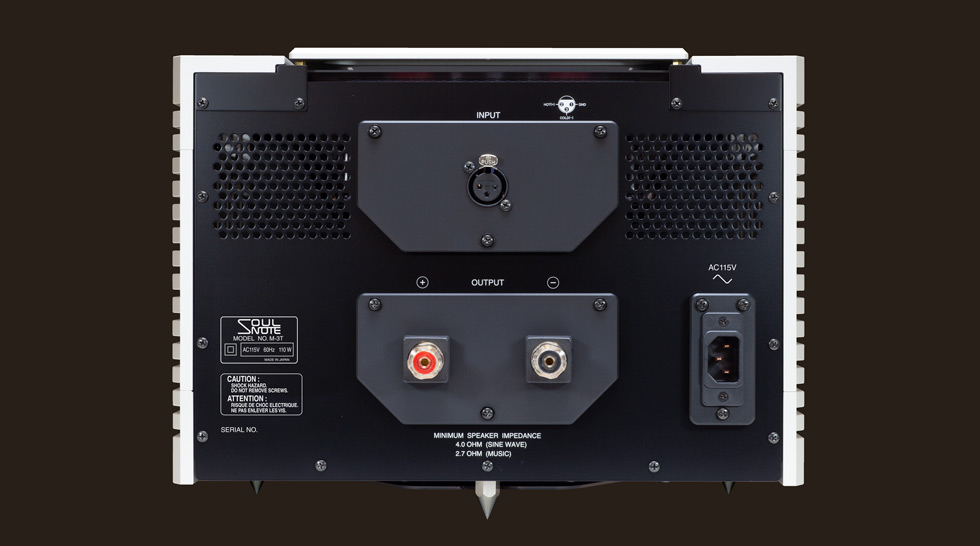

Rear panel
Included accessories
Special speaker cable, Special rack, Power cable, Setting plate
User Manual
Notes on this product

Never connect XLR-RCA converter cables, adapters, short pins, or similar connectors to analog output terminals. They could damage the equipment.

Temperature settings
The circuit current in SOULNOTE products relies on solutions with the highest emphasis on sound quality and safety. Functionality and sound quality generally improve when the transistors operate at higher temperature.。

Anti-vibration housing
SOULNOTE products place the highest emphasis on sound quality, so the top cover, chassis, and other components do not employ vibration isolation.

Regarding use of electronic equipment cleaners and contact rejuvenation products on SOULNOTE products
Commercially available electronic equipment cleaners and contact rejuvenation products could damage the resin components of SOULNOTE AC inlets. Do not use these types of chemical products on SOULNOTE equipment.
