About ZERO LINK
.jpg)
ZERO LINK is the ultimate digital link system between transport and D/A converter developed for achieving a goal that “ Leaving asynchronous circuits out from D/A converters to aquire high sound quality" formulated by SFORZATO and SOULNOTE.
The improvement in sound quality by leaving out asynchronous circuits from the D/A converter is actually overwhelming.
And it is ZERO LINK that enables asynchronous circuits in D/A converters ZERO.
ZERO LINK not only sends Master clock signals and I2S signals, but also interactively communicates between Transport and D/A converter. That is, the transport transmits the format of the sound source to the D/A converter before playback first, and the DDS of the D/A converter generates a high-grade master clock synchronized to this format and sends it back to the transport. Then the transport generates a pure I2S signal synchronized to that master clock and sends it to the D/A converter again. As a result, ZERO LINK enables DAC and Transport completely synchronized with Master clock generated by DAC, and as a result enables completely leaving out synchronous circuits that can cause sound quality deterioration.
Click here to check ZERO LINK sample sound source.
Internal operation of a typical network connection
Both connection methods have asynchronous circuits in the D/A converter.

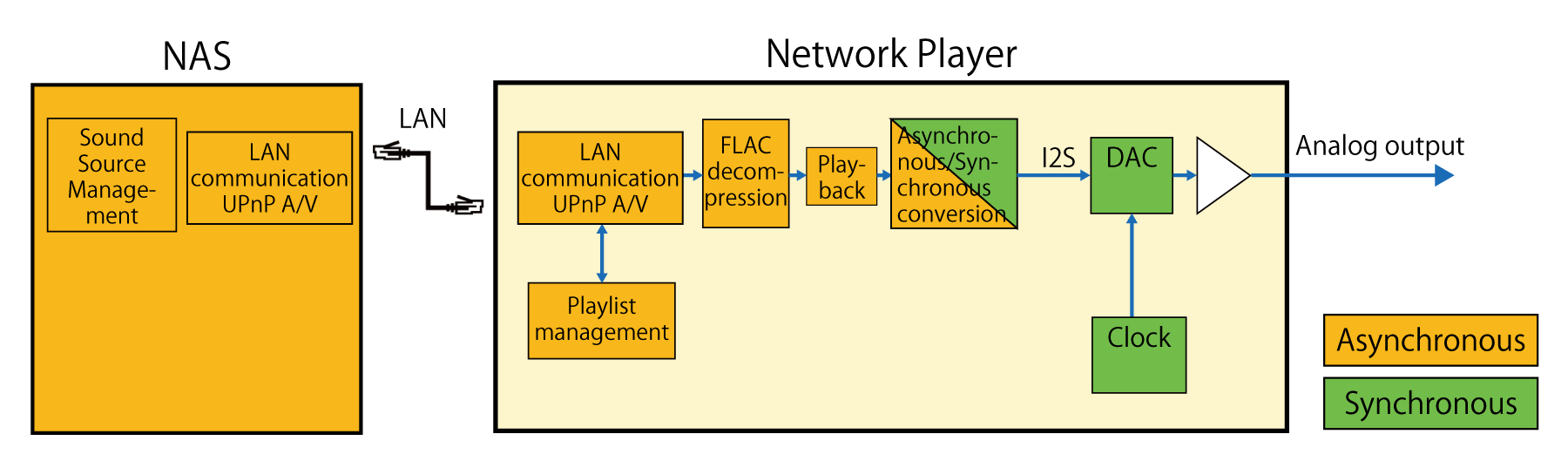

Network Player Configuration

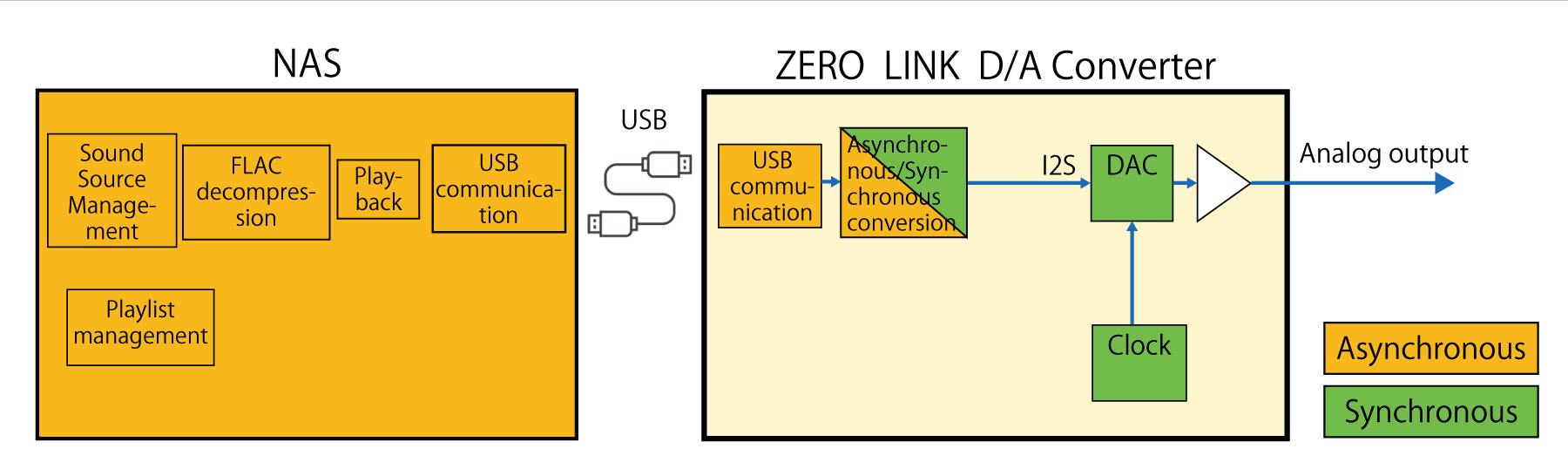

USB DAC Configuration

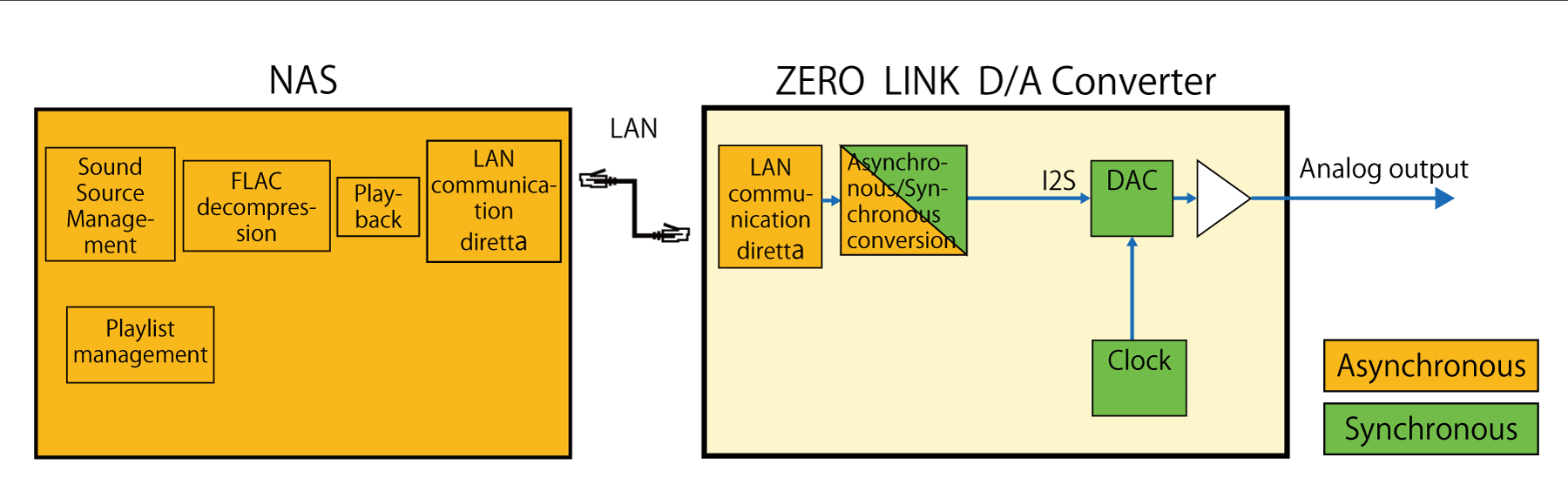

LAN DAC (diretta) operation
Internal operation of ZERO LINK connection
In ZERO LINK operation, the D/A converter has no asynchronous operation at all.

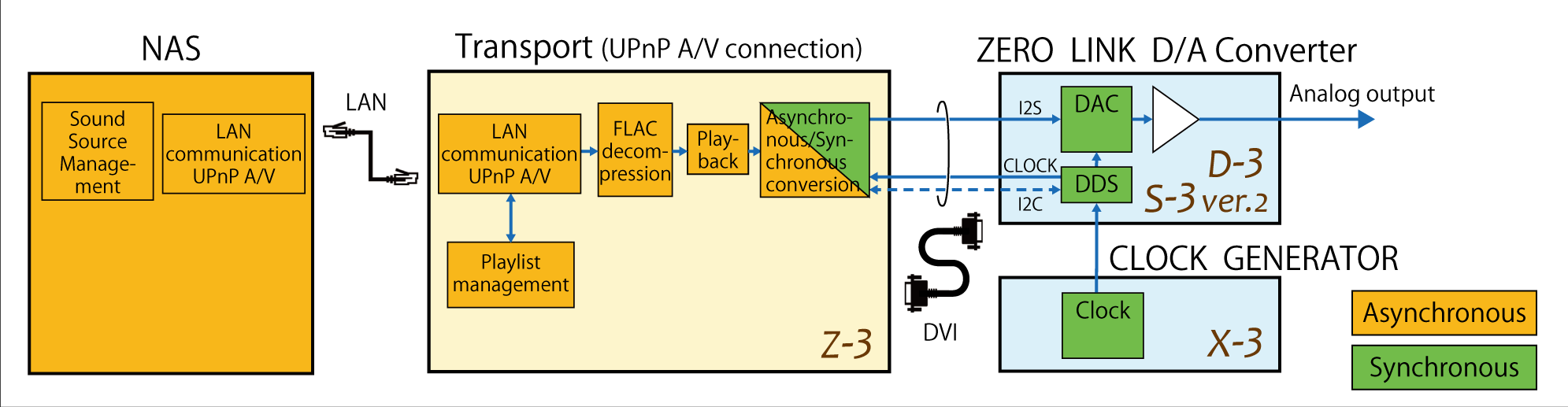

Configuration of ZERO LINK when the transport is operated with UPnP A/V

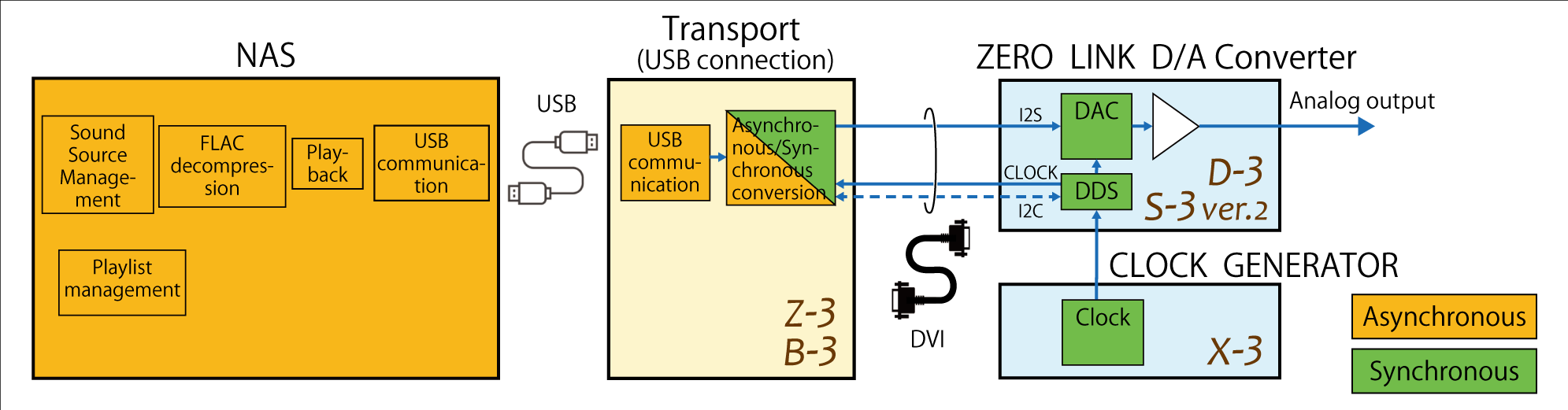

ZERO LINK configuration when the transport is operated via USB connection

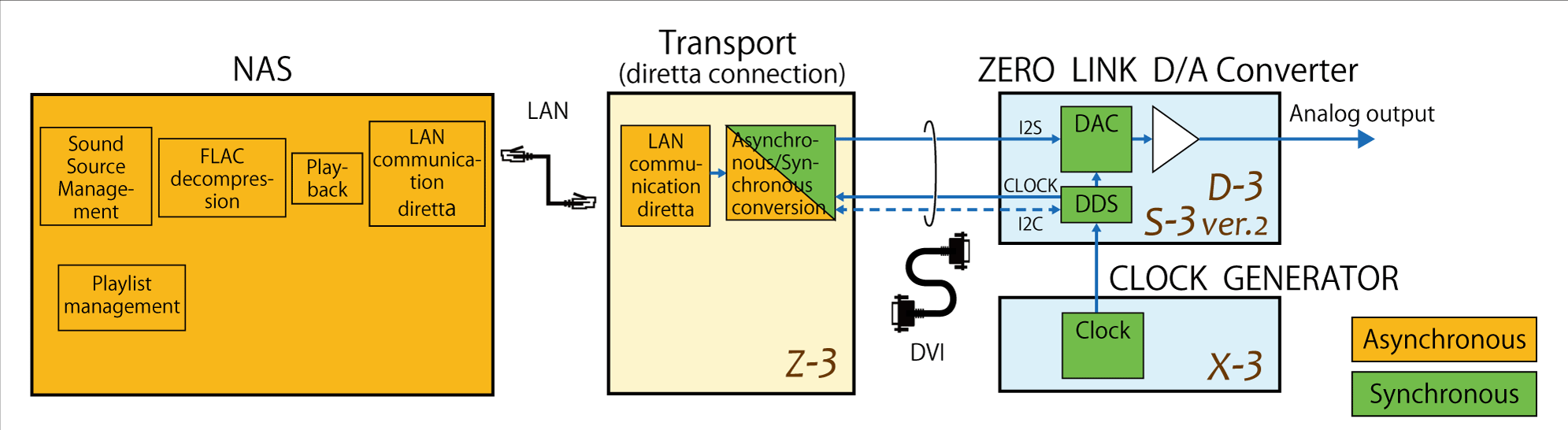

ZERO LINK configuration when the transport is operated with diretta
ZERO LINK is the ultimate digital link system between transport and D/A converter developed for achieving a goal that “ Leaving asynchronous circuits out from D/A converters to aquire high sound quality" formulated by SFORZATO and SOULNOTE.
The improvement in sound quality by leaving out asynchronous circuits from the D/A converter is actually overwhelming.And it is ZERO LINK that enables asynchronous circuits in D/A converters ZERO.
ZERO LINK not only sends Master clock signals and I2S signals, but also interactively communicates between Transport and D/A converter. That is, the transport transmits the format of the sound source to the D/A converter before playback first, and the DDS of the D/A converter generates a high-grade master clock synchronized to this format and sends it back to the transport. Then the transport generates a pure I2S signal synchronized to that master clock and sends it to the D/A converter again. As a result, ZERO LINK enables DAC and Transport completely synchronized with Master clock generated by DAC, and as a result enables completely leaving out synchronous circuits that can cause sound quality deterioration.
Click here to check ZERO LINK sample sound source.
Internal operation of a typical network connection
Both connection methods have asynchronous circuits in the D/A converter.
Network Player Configuration
USB DAC Configuration
LAN DAC (diretta) operation
Internal operation of ZERO LINK connection
In ZERO LINK operation, the D/A converter has no asynchronous operation at all.
Configuration of ZERO LINK when the transport is operated with UPnP A/V
ZERO LINK configuration when the transport is operated via USB connection
ZERO LINK configuration when the transport is operated with diretta
